Tradeoff figure

Source: R/plot-statevar.R
plot_tradeoff.Rd

Generates a tradeoff figure, a comparison between two performance metrics, across two variables which may represent a population dynamics variable (e.g., productivity) or a management action (e.g., hatchery production levels or harvest strategy). See example at https://docs.salmonmse.com/articles/decision-table.html

Usage

plot_tradeoff(
  pm1,
  pm2,
  x1,
  x2,
  xlab,
  ylab,
  x1lab,
  x2lab,
  scenario,
  scenario_rows,
  scenario_cols,
  ncol = NULL,
  dir = "v",
  add_letters = FALSE
)

Arguments

pm1

Numeric or matrix. A vector of values for the first performance metric on the x-axis. Alternatively, provide a three column matrix corresponding to the lower bound, central tendency, and upper bound.

pm2

Numeric or matrix. A vector of values for the second performance metric on the y-axis (same length as pm1). Alternatively, provide a three column matrix corresponding to the lower bound, central tendency, and upper bound.

x1

Atomic, vector of values for the first grouping variable. Various levels are represented by colours. Same length as pm1. If numeric, you may want to convert values to factors.

x2

Atomic, vector of values for the second grouping variable. Various levels are represented by shapes. Same length as pm1. If numeric, will be converted to factors.

xlab

Character, optional x-axis label

ylab

Character, optional y-axis label

x1lab

Character, optional label for the first grouping variable

x2lab

Character, optional label for the second grouping variable

scenario

Atomic, vector of scenario names (same length as pm1, pm2) used to identify and create separate panels

scenario_rows

Atomic, vector of scenario variables (same length as pm1, pm2) used to identify the rows in a grid of tradeoff figures. Use with scenario_cols

scenario_cols

Atomic, vector of scenario variables (same length as pm1, pm2) used to identify the columns in a grid of tradeoff figures. Use with scenario_cols

ncol

Integer, number of columns in the grid, only used if scenario is provided

dir

Character, either "h" or "v" to describe how the grid of tables should be organized (horizontally or vertically) , only used if scenario is provided

add_letters

Logical, whether to identify separate panels by letters (only used if scenarios are identified). Helpful for publication-level figures

Value

ggplot object

See also

plot_statevar_ts() plot_decision_table()

Examples

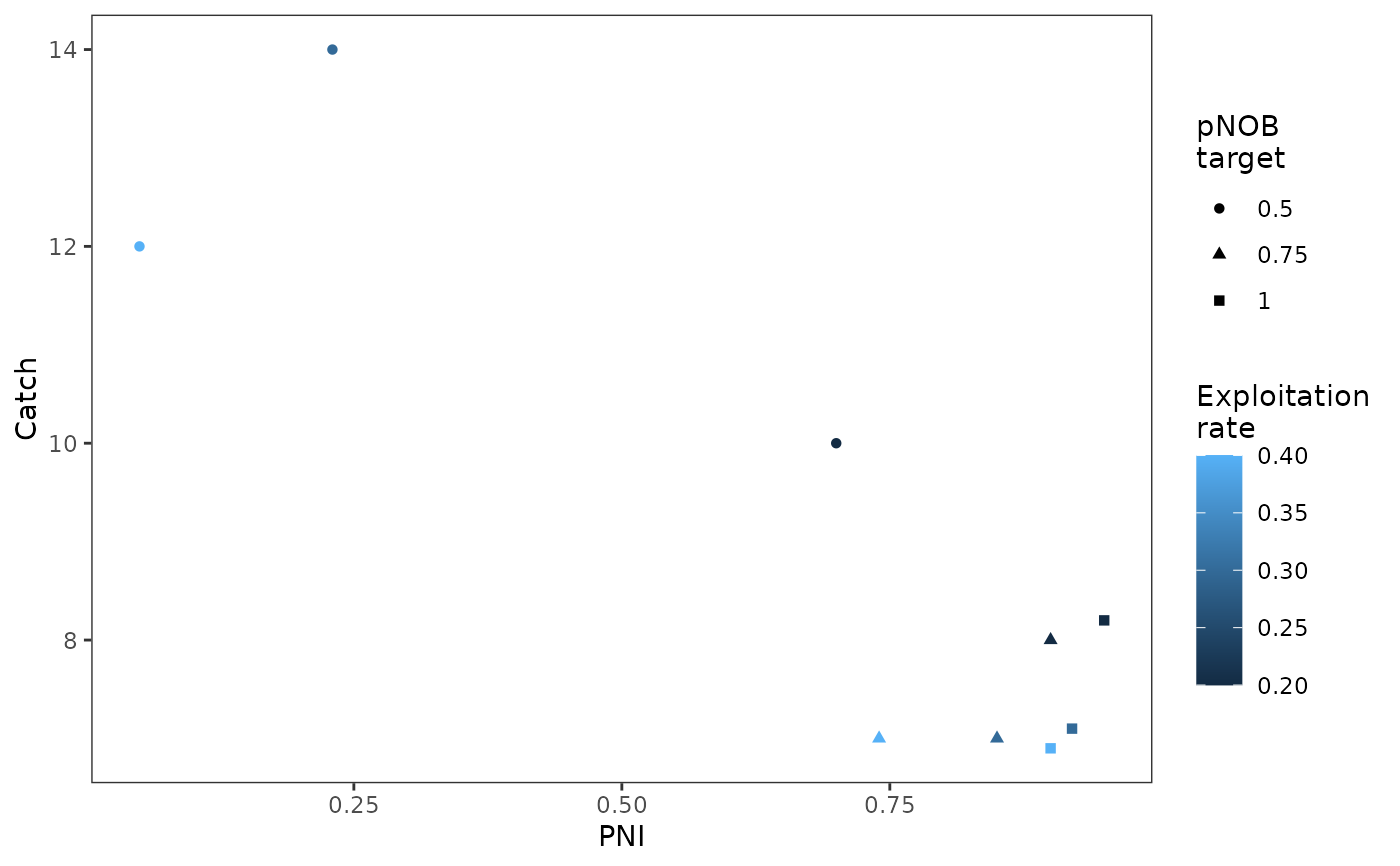

# Single tradeoff panel
results <- data.frame(
  PNI = c(0.7, 0.23, 0.05, 0.9, 0.85, 0.74, 0.95, 0.92, 0.9),
  Catch = c(10, 14, 12, 8, 7, 7, 8.2, 7.1, 6.9),
  pNOB = rep(c(0.5, 0.75, 1), each = 3),
  ER = rep(c(0.2, 0.3, 0.4), 3),
  scenario = "High productivity"
)

plot_tradeoff(
  pm1 = results$PNI,
  pm2 = results$Catch,
  x1 = results$ER,
  x2 = results$pNOB,
  xlab = "PNI",
  ylab = "Catch",
  x1lab = "Exploitation\nrate",
  x2lab = "pNOB\ntarget"
)

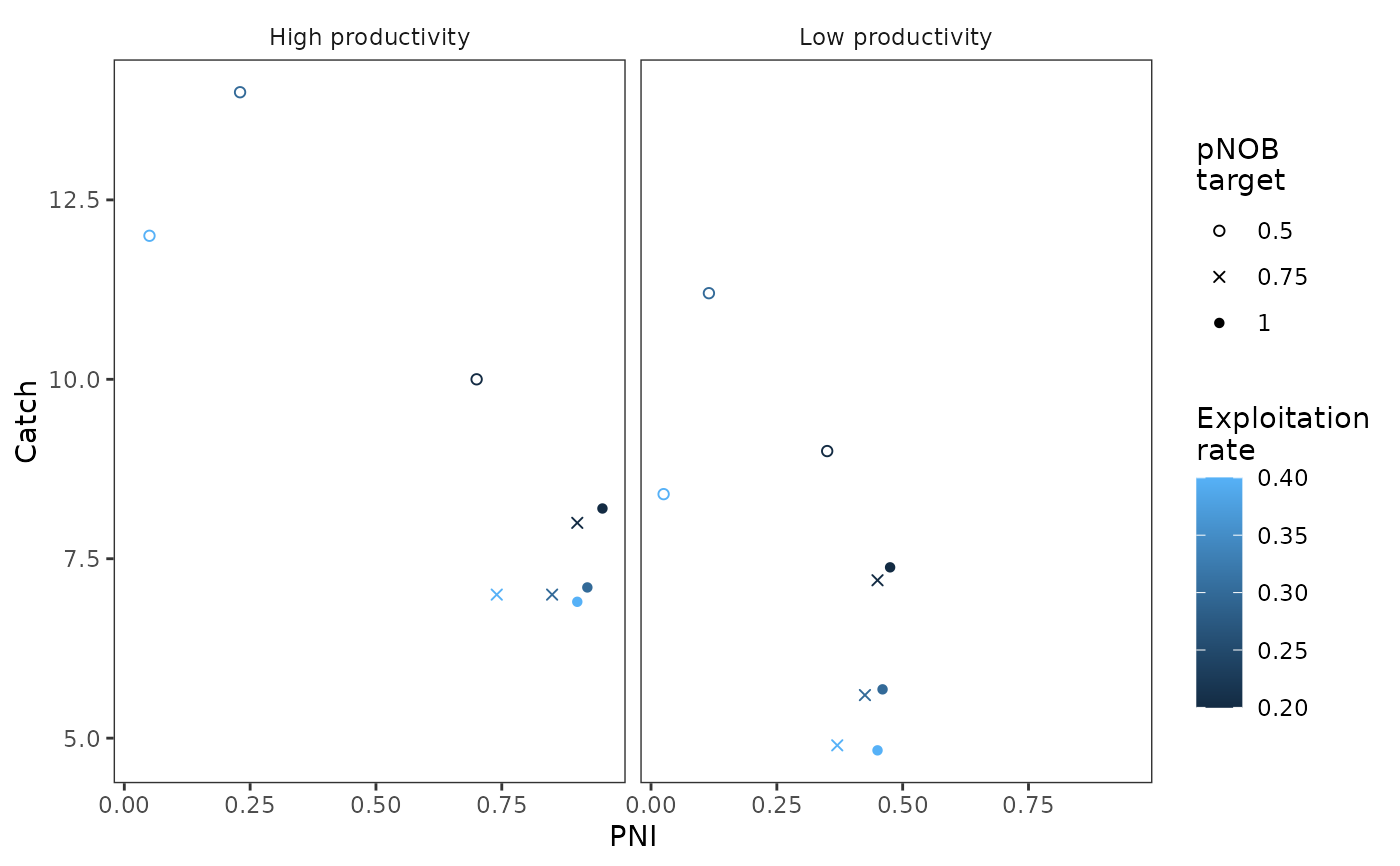

# Multiple panels, continuing from above code
results_low <- results
results_low$scenario <- "Low productivity"
results_low$PNI <- 0.5 * results$PNI
results_low$Catch <- c(0.9, 0.8, 0.7) * results$Catch

results_all <- rbind(results, results_low)
g <- plot_tradeoff(
  pm1 = results_all$PNI,
  pm2 = results_all$Catch,
  x1 = results_all$ER,
  x2 = results_all$pNOB,
  xlab = "PNI",
  ylab = "Catch",
  x1lab = "Exploitation\nrate",
  x2lab = "pNOB\ntarget",
  scenario = results_all$scenario
)

# Change legend with ggplot2
library(ggplot2)
g + scale_shape_manual(values = c(1, 4, 16))
